TEGPRODUCTS


Material Au Solder Cu Ni Electroless
Ni/Au		 Function
- +SnAg +Ni
+SnAg or
+SnBi		 - +SnAg
Form PLATE STUD PLATE MOUNT PLATE PLATE PLATE PLATE PLATE PLATE ---
Image ---
MB50 ● ● － － ● ● ● ● ● ● Daisy
MB80 － ● － － ● ● ● ● ● ● Daisy
AS8R ● － － － ● － － － － ● Daisy
MB130A/MB130B － ● － － ● ● ● ● ● ● Daisy
MB6020 － ● － － － － － － － ● Daisy
 CC40/CC40MB  － － － － ● ● ● ● ● ● Daisy
IP40 － － － － ● ● ● ● ● ● Daisy/Vernier
Bump Short/
Breakdown Voltage
IP40MB － － － － － － － － － ●
 IP40A － － － － ● ● － － － －
CC80 － ● － － ● ● ● ● ● ● Daisy
IP80 － － － － ● ● ● ● ● ● Daisy
CC80TSV － － － － － ● － － － ●/◎ TSV
CC80MarkⅣ － － － － ● ● － － － ● Daisy
IP80MarkⅣ － － － － － － － － － ● Daisy
WM40-0101 － － － － ◎ ● － － － ● ---
WM40-0102 － － － － － ● － － － ● Daisy
WM40-0103 － － － － － ● － － － ● Daisy
IPWM40 － － － － － － － － － ● Daisy/
Bump Short/
Break Down Voltage
HBM-T － － － － ● ● － － － ● Daisy
IPHBM － － － － － － － － － ● Daisy
FC150LC － － － － ● ● － － － ● Daisy
FC120 － － － － ● ● ● ● ● ● Daisy
FC150 － － － ● ● ● ● ● ● ● Daisy
FC150SC － － － ● ● ● ● ● ● ● Daisy
FC200 － － － ● ● ● ● ● ● ● Daisy
FC200SC － － － ● ● ● ● ● ● ● Daisy
FBW － － － － ● ● － － － － ---
FBWA － － － － ● ● － － － － ---
WLP － － － ● － － － － － － Daisy
Free Size Cut － － － ● － － － － － － Daisy
ME － － － － ● － － － － － Migration
HPW － ● － － ● ● ● ● ● ● Thermal/
Heat Generation

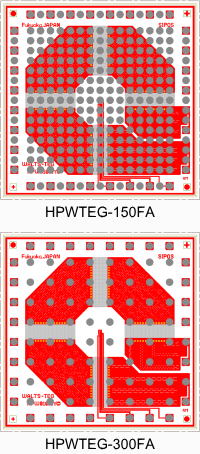

HPW150FA － － － － ● ● ● ● ● －
HPW300FA － － － － ● ● ● ● ● －

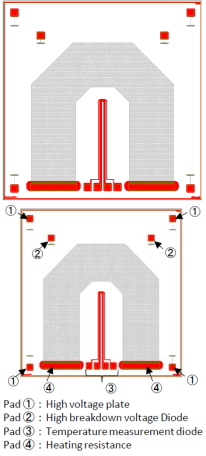

HPW MarkⅡ － － － － ● ● ● － － ● Thermal/
Heat Generation/
Insulation Resistance
LCD30A ● － － － － － － － － － Daisy
PWB8/PWB － － － － ● － － － － － Bondability
ITO1101/1102 － － － － － － － － － － Bondability

　● Top Side　/　◎Bottom Side

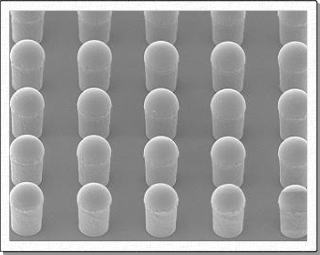

Cu Pillar Bump TEG

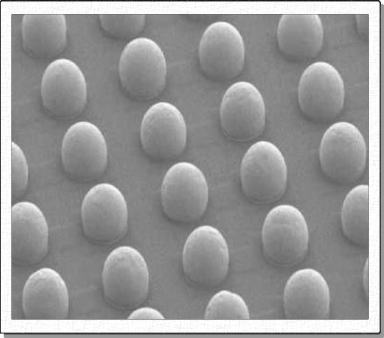

Solder Bump TEG

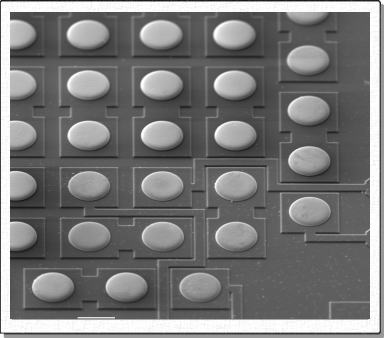

Electroless Plating Bump TEG

TEG　Product Details


WALTS-TEG MB50-0101JY

MB50-0101JY
Specification Type-A Type-B
Wafer Size 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm
Chip Size 7.3mm■ 7.3mm■
Pad Pitch 50μm 50μm
Function Daisy Chain Daisy Chain
Bump Size － Au: 30µm■
Cu: 30µm■
Cu: φ25μm●
Electrode/Height Au-Stud Bump
Wire Bonding		 Cu-Pillar
Au-Plated
Solder Plated
Ni on Cu-Pillar
(Cu30μm+SnAg15µm)
Number of Pad 544 pads/chip 544 pads/chip
Number of Chip 478 chips/wafer 478 chips/wafer

WALTS-TEG MB80-STG0101JY

○○○○○○○○イメージ
Specification TYPE-A  TYPE-B
Wafer Size 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm
Chip Size 7.3mm■ 7.3mm■
Pad Pitch 80μm Staggerd 80μm Staggerd
Function Daisy Chain Daisy Chain
Bump Size － 38μm■
Electrode Wire Bonding Cu Pillar
Number of Pad 648 pads/chip
82 pads × 4 (Outer Line)
80 pads × 4 (Innter Line)		 648 pads/chip
82 pads × 4 (Outer Line)
80 pads × 4 (Innter Line)
Number of Chip 478 chips/wafer 478 chips/wafer

WALTS-TEG AS8R

TEG_AS8R
Specification AS8R
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 3.5 mm■
Pad Pitch 120μm
Function Daisy Chain
Bump Size －
Electrode Wire Bonding
Stud Bump
Cu Pillar
Number of Pad 96 pads/chip (Outer Line)
88 pads/chip (Inner Line)
Number of Chip 2266 chips/wafer

WALTS-TEG MB130A-STG0101JY

WALTS-TEG MB130B-STG0101JYUPDATE

TEG_MB130-STG0101JY
Specification MB130
MB130A TYPE-A MB130A TYPE-B MB130B
Wafer Size 8 inch 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm 725±25μm
Chip Size 2.13 mm■ 2.13 mm■ 2.13 mm■
Metal Material Al-Si-Cu Al-Si-Cu Al-Cu
Pad Pitch 130μm 130μm 130μm
Function Daisy Chain Daisy Chain Daisy Chain
Bump Size － Φ70µm －
Electrode Wire Bonding
Au Stud Bump		 Cu Bump Wire Bonding
Au Stud Bump
Number of Pad 108 pads/chip
15 pads× 4 (outer Line)
12 pads× 4 (Inner Line) 		108 pads/chip
15 pads× 4 (outer Line)
12 pads× 4 (Inner Line) 		108 pads/chip
15 pads× 4 (outer Line)
12 pads× 4 (Inner Line)
Number of Chip 6060 chips/wafer 6060 chips/wafer 6060 chips/wafer

WALTS-TEG MB6020-0102JY

TEG_MB6020-0101JY
Specification MB6020-0102JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 3.0 mm■
Pad Pitch 60 / 55 / 50 / 45 / 40 / 35 / 30 / 25 / 20 μm
Function Daisy Chain
Bump Size －
Electrode Wire Bonding
Number of Pad (40×4)　(40×4)　(38×4)
(38×4)　(36×4)　(34×4)
(30×4)　(26×4)　(18×4)
Number of Chip 3016 chips/wafer

WALTS-TEG CC40-0101JY

TEG_CC40-0101JY
Specification CC40-0101JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 7.3 mm■
Pad Pitch Model Ⅰ:　40μm Staggered + 40μm Full Area　
Model Ⅱ:　40μm Staggered　　　　　　　　　　
Function Daisy Chain
Bump Size Model Ⅰ:　22μm●
Model Ⅱ:　22μm●
Electrode/Height (Cu15μm+SnAg10μm)
Number of Pad Model Ⅰ: 29576 pads/chip
Model Ⅱ:　1352 pads/chip
Number of Chip 478 chips/wafer
Evaluation KIT WALTS-TEG IP40A-0101JY (Silicon Interposer)

WALTS-TEG CC40MB-0101JYUPDATE

TEG_CC40MB-0101JY
Specification CC40-0101JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 7.3 mm■
Pad Pitch 40μm pitch Full area + Staggerd(Peripheral)
Function Daisy Chain
Bump Size 10μm●
Number of Pad 29576 pads/chip
Number of Chip 478 chips/wafer
Evaluation KIT WALTS-TEG IP40MB-0101JY (Silicon Interposer)

WALTS-TEG IP40-0101JY

TEG_IP40-0101JY
Specification IP40-0101JY（ModelⅠ / ModelⅡ）
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 10.0 mm■
Pad Pitch (1) 40μm pitch Full area + Staggered (Model Ⅰ)
40μm pitch Staggered (Model Ⅱ)　　　　
(2) 250μm pitch Periphera (Outer Pad)　　　　　
Function Daisy Chain
Bump Short Check
Vernier
Breakdown Voltage Check between the Bumps
Bump Size ---
Electrode Electoroless Ni/Au plating
Number of Pad Model Ⅰ：(1) 29576 pads/chip　(2) 124 pads/chip (Outer Pad)
Model Ⅱ：(1)　1352 pads/chip　(2) 124 pads/chip (Outer Pad)
Number of Chip 256 chips/wafer

WALTS-TEG IP40MB-0101JYUPDATE

TEG_IP40-0101JY
Specification IP40MB-0101JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 10.0 mm■
Pad Pitch (1) 40μm pitch Full area
(2) 40μm pitch Staggered(Peripheral)
(3) 250μm pitch Peripheral (Outer Pad)　　　　　
Function Daisy Chain
Bump Short Check
Vernier
Breakdown Voltage Check between the Bumps
Bump Size ---
Electrode Electoroless Ni/Au plating
Number of Pad (1) 28224 pads(2)1352pads(3)124pads
Number of Chip 256 chips/wafer

WALTS-TEG IP40A-0101JY

TEG_IP40A-0101JY
Specification IP40A-0101JY（ModelⅠ）
Wafer Size 12 inch
Wafer Thickness 775±25μm
Chip Size 10.0 mm■
Pad Pitch (1) 40μm pitch Full area + Staggered (ModelⅠ)
(2) 250μm pitch Periphera (Outer Pad)　　 　　
Function Daisy Chain
Bump Short Check
Vernier
Breakdown Voltage Check between the Bumps
Bump Size ---
Electrode Electoroless Ni/Au plating
Number of Pad Model Ⅰ：(1) 29576 pads/chip　(2) 124 pads/chip (Outer Pad)
Number of Chip 616 chips/wafer

WALTS-TEG CC80-0101JY　　>> CONCEPT

○○○○○○○○イメージ
Specification CC80-0101JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 7.3 mm■
Pad Pitch 80μm Staggered (Peripheral)
300μm Full Area (Center Core)
Function Daisy Chain
Bump Size 38µm■ or φ42μm●
Electrode/ Height Au-stud Bump
Wire Bonding
Au Plating
Cu Pillar
(Cu30μm+SnAg15μm)
Number of Pad 1048 pads/chip
Peripheral(648)
Full Area(400)
Number of Chip 478 chips/wafer
Evaluation KIT WALTS-TEG IP80-0101JY
WALTS-KIT CC80(T)-0106JY

WALTS-TEG IP80-0101JY　　>> CONCEPT

○○○○○○○○イメージ
Specification IP80-0101JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 10.0 mm■
Pad Pitch (1) 80μm Staggered (Inner Pad)
(2) 300μm Full Area (Center Core)
(3) 250μm Periphera (Outer Pad)
Function Daisy Chain
Bump Size －
Electrode Cu Pillar
Electoroless Ni/Au plating
Number of Pad (1) 648 pads/chip
(2) 400 pads/chip
(3) 124 pads/chip
Number of Chip 256chips/wafer

WALTS-TEG CC80TSV-0101JY　　>> CONCEPT

TEG_CC80TSV
Specification CC80TSV-2
Wafer Size 8 inch
Chip Thickness 100μm
Chip Size 7.3 mm■
Pad Pitch 80μm Staggered (Periphera)
300μm Full Area (Center Core)
TSV Hole Diameter φ40µm●
Top
Side		 Electrode Cu+SnAg
 Bump Size 38μm■ （Option: φ42μm●）
 Bump Height （Cu20μm+SnAg15μm）
Bottom
Side		 Electrode Electroless Ni/Au
 Bump Size φ48μm●（Option: φ42μm●）
 Bump Height （8～12µm）
Number of Chip 478 chips/wafer
Evaluation KIT WALTS-TEG CC80-0101JY
WALTS-TEG IP80-0101JY (Silicon Interposer)

WALTS-TEG CC80MarkIV-0101JY　　>> CONCEPT

TEG_CC80TSV
Specification CC80MarkIV-0101JY
Wafer Size 8inch
Wafer Thickness 725±25μm
 Chip Chip A Chip B
Chip Size 6.0 mm × 10.0 mm 4.0 mm × 10.0 mm
 Pad Pitch
① 40μm［10Row］×50μm［192Row］ (Peripheral)
② 80μm staggered［3Row］ (Center core)
③ 150μm Min. Lattice
Function Daisy Chain
Electrode/Height （Cu15μm+SnAg10μm）
Bump Size φ25μm●
Number of Bump/Pad ①1920bumps/1920pads
② 687 bumps/ 687 pads
③1743bumps/1743pads		 ①1920bumps/1920pads
② 531 bumps/ 531 pads
③ 978 bumps/ 978 pads
Number of Chip Chip A：228chips/wafer　　Chip B：228chips/wafer
Evaluation KIT WALTS-TEG IP80MarkIV-0101JY (Sillicon Interposer)

WALTS-TEG IP80MarkIV-0101JY　　>> CONCEPT

TEG_CC80TSV
Specification IP80MarkIV-0101JY
Wafer Size 8inch
Wafer Thickness 725±25μm
Chip Size 15.0 mm × 15.0 mm
 Pad Pitch
① 40μm［10Row］×50μm［192Row］×2 (Peripheral)
② 80μm staggered［3Row］ (Center core)
③ 150μm Min. Lattice
④ 300μm (Staggered)
Function Daisy Chain
Electrode Electroless Ni/Au plating
Bump Size ①27μm●　②27μm●　③27μm●　④141μm■
Number of Bump/Pad ①3840bumps/3840pads
②1172bumps/1172pads
③2721bumps/2721pads
④327bumps/329pads
Number of Chip 97 chips/wafer

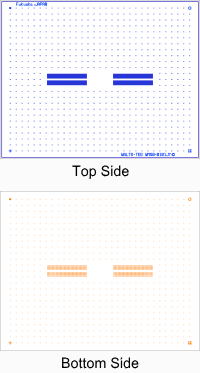

WALTS-TEG WM40-0101JY　　CONCEPT

TEG_CC80TSV
Specification WM40-0101JY
Wafer Size 8inch
Wafer Thickness 50μm
Chip Size 10 mm × 8 mm
Function ---
Top
Side		 Electrode Cu Pillar
Bump Size φ20μm●
Electrode （Cu10μm + SnAg8μm)
Bump Pitch ① 40μm ②300μm
Number of Bump ①1200 bumps ② 714 bumps
Bottom
Side		 Electrode Cu Post
Bump Size φ26μm●
Electrode/ Height Cu Post
（Cu 6μm）
Bump Pitch ① 40μm ②300μm
Number of Bump ①1200 bumps ② 714 bumps
Number of Chip 312 chips/wafer
Evaluation KIT WALTS-KIT CC80MarkII-0201JY

　

WALTS-TEG WM40-0102JY　　CONCEPT　

TEG_CC80TSV
Specification WM40-0102JY
Wafer Size 8inch
Wafer Thickness 725±25μm
Chip Size 10 mm × 8 mm
Function Daisy Chain
Electrode Cu Pillar
 Bump Size φ20μm●
Bump Height （Cu15μm + SnAg8μm)
Bump Pitch ① 40μm ②300μm
Number of Bump ①1200 bumps ② 714 bumps
Number of Chip 312 chips/wafer
Evaluation KIT WALTS-KIT CC80MarkII-0201JY

WALTS-TEG WM40-0103JY

TEG_WM40-0103JY
Specification WM40-0103JY
Wafer Size 8inch
Wafer Thickness 725±25μm
Chip Size 10 mm × 8 mm
Function Daisy Chain
Electrode Cu Pillar
Bump Size φ20μm●
Bump Height （Cu10μm + SnAg10μm)
Bump Pitch ① 40μm ②300μm
Number of Pad I/O area
40μm pitch x 1200 pads		 Dummy area
300μm pitch x 714 pads
Number of Chip 312 chips/wafer

WALTS-TEG IPWM40-0101JY

TEG_IPWM40-0101JY
Specification IPWM40-0101JY
Wafer Size 8inch
Wafer Thickness 725±25μm
Chip Size 13.0mm■
Function Daisy Chain
Bump Short Check
Break Down Voltage Check Between Bump
Electrode Electroless Ni/Au plating
Bump Size φ25μm●
Bump Height 2.5μm
Bump Pitch ① 40μm ②300μm
Number of Bump ①1200 Bumps ②714 Bumps
Probe pad 72pad
(same pad area as WM40-0103JY)
Number of Chip 148 chips/wafer

WALTS-TEG HBM-T-0100JY >> CONCEPT

TEG_HBM-T-0100JY
Specification HBM-T-0100JY
Wafer Size 8inch
Wafer Thickness 725±25μm
Chip Size 10.0mm×8.0mm
Scribe Width 120μm
Base Layer P-TEOS
Metal Layer TiN/AlCu
PV Layer HDP / P-SiN
PV Opening φ8μm
Pad Size 27μm■
Bump Size φ16μm●
Number of Pad 7200 pads(I/O area) 6544 pads(Staggerd area)
Number of Bump 7200 bumps(I/O area)
6544 bumps(Staggerd area)
912 bumps(Dummy area)
Number of Chip 312 Chips / Wafer

WALTS-TEG IPHBM-0100JY >> CONCEPT

TEG_IPHBM-0100JY
Specification IPHBM-0100JY
Wafer Size 8inch
Wafer Thickness 725±25μm
Chip Size 12.0mm×10.0mm
Scribe Width 120μm
Base Layer P-TEOS
Metal Layer TiN/AlCu
PV Layer HDP / P-SiN
PV Opening φ18μm
Connection Pad Size 27μm■
Probe Pad Size 300μm■
Bump Size NiAu2.5μm×, φ23μm●
Number of Pad 7200 pads(I/O area)
6544 pads(Staggerd area)
912 pads(Dummy area)
96 pads(Outer area)
Number of Chip 204 Chips / Wafer

WALTS-TEG FC150LC-0102JY

TEG_FC150LCJY_Si
Specification FC150LC-0102JY
Wafer Size 12 inch
Wafer Thickness 775±25μm
Chip Size 25.0mm■
Pad Pitch 150 μm (Area)
Function Daisy Chain
Bump Size φ75µm●
Electrode/Height Cu Pillar （Cu30µm+SnAg15µm）/（Cu30µm+SnAg25µm）
Number of Pad 25921 pads/chip (161×161)
Number of Chip 89 chips/wafer
Evaluation KIT WALTS-KIT FC150LC-0303JY

　

WALTS-TEG FC120JY

TEG_FC120JY_Si
Specification TEG FC120JY
Wafer Size 8 inch
Wafer Thickness 775±25μm
Chip Size 10.0mm■
Pad Pitch 120μm
Function Daisy Chain
Pad Size 80µm■
Passivation opening φ20µm●
Polyimide opeinng φ40µm●
UBM Size φ65µm●
Bump Size φ60µm●
Number of Pad 5776 pads/chip (76×76)
Number of Chip 208 chips/wafer
Evaluation KIT WALTS-KIT FC120(S)-0101JY 2×2

WALTS-TEG FC150JY

TEG_FC150JY_Si
Specification Type-A Type-B
Wafer Size 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm
Chip Size 10.0mm■ 10.0mm■
Pad Pitch 150 μm (Area) 150 μm (Area)
Function Daisy Chain Daisy Chain
Bump Size φ90µm● φ75µm●
Electrode Ball Mounted Solder Bump Cu Pillar
Number of Pad 3721 pads/chip (61×61) 3721 pads/chip (61×61)
Number of Chip 208 chips/wafer 208 chips/wafer
Evaluation KIT WALTS-KIT 01A150P(S)-10-3 1×1
WALTS-KIT FC150(S)-0106JY 2×2

WALTS-TEG FC150SCJY

TEG_FC150SCJY
Specification Type-A Type-B
Wafer Size 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm
Chip Size 5.02mm■ 5.02mm■
Pad Pitch 150 μm (Area) 150 μm (Area)
Function Daisy Chain Daisy Chain
Bump Size φ90µm● φ80µm●
Electrode Ball Mounted Solder Bump Cu Pillar
Number of Pad 784 pads/chip (28×28) 784 pads/chip (28×28)
Number of Chip 832 chips/wafer 832 chips/wafer

WALTS-TEG FC200JY

TEG_FC200JY_Si
Specification Type-A Type-B
Wafer Size 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm
Chip Size 10.0mm■ 10.0mm■
Pad Pitch 200μm (Area) 200μm (Area)
Function Daisy Chain Daisy Chain
Bump Size φ110µm● φ90µm●
Electrode Ball Mounted Solder Bump Cu Pillar
Number of Pad 2116 pads/chip (46×46) 2116 pads/chip (46×46)
Number of Chip 228 chips/wafer 228 chips/wafer
Evaluation KIT WALTS-KIT 01A200P(S)-10-2 1×1
WALTS-KIT FC200-0102JY 2×2

WALTS-TEG FC200SCJY

TEG_FC200SCJY --> -->
Specification Type-A Type-B
Wafer Size 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm
Chip Size 5.02mm■ 5.02mm■
Pad Pitch 200μm (Area) 200μm (Area)
Function Daisy Chain Daisy Chain
Bump Size φ110µm● φ90µm●
Electrode Ball Mounted Solder Bump Cu Pillar
Number of Pad 484 pads/chip (22×22) 484 pads/chip (22×22)
Number of Chip 832 chips/wafer 832 chips/wafer

WALTS-TEG FBW200A-0000JY 　UPDATE

WALTS-TEG FBW150A-0000JY

WALTS-TEG FBW100A-0000JY

WALTS-TEG FBW80A-0000JY

WALTS-TEG FBW40A-0001JY

WALTS-TEG FBW20A-0001JY

TEG_FBW200
Specification FBW200A FBW150A FBW100A FBW80A FBW40A FBW20A
Wafer Size 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch
Wafer Thickness 775±25μm 775±25μm 775±25μm 775±25μm 775±25μm 775±25μm
Bump Pitch 200μm 150μm 100μm 80μm 40μm 20μm
Electrode Cu Pillar Cu Pillar Cu Pillar Cu Pillar Cu Pillar Cu Pillar
Bump Size φ90μm φ75μm φ50μm φ40μm φ20μm φ10μm
Bump Height (Max.80μm) (Max.75μm) (Max.70μm) (Max.45μm) (Max.30μm) (Max.4μm)

WALTS-TEG FBW40-0000JY 　UPDATE

WALTS-TEG FBW30-0002JY

WALTS-TEG FBW20-0001JY

WALTS-TEG FBW15-0001JY

WALTS-TEG FBW10-0001JY

TEG_FBW200
Specification FBW40 FBW30 FBW20 FBW15 FBW10
Wafer Size 8 inch 8 inch 8 inch 8 inch 8 inch
Wafer Thickness 725±25μm 725±25μm 725±25μm 725±25μm 725±25μm
Bump Pitch 40μm 30μm 20μm 15μm 10μm
Electrode Cu Pillar Cu Pillar Cu Pillar Cu Pillar Cu Pillar
Bump Size φ20μm φ15μm φ10μm φ7.5μm φ5μm
Bump Height (Max.30μm) (Max.22μm) (Max.15μm) (Max.11μm) (Max.7μm)

WLP TEG (0.5mm pitch & 0.4mm pitch & 0.3mm pitch)

WLP_0.3mm
Specification 0.5mm pitch BGA 0.4mm pitch BGA 0.3mm pitch BGA
Wafer Size 8 inch 8 inch 8 inch
Wafer Thickness 400±20μm 400±20μm 400±20μm
Chip Size 6.0mm■ 6.0mm■ 6.0mm■
BGA Pitch 500μm 400μm 300μm
Function Daisy Chain Daisy Chain Daisy Chain
Electrode Ball Mounted Solder Bump Ball Mounted Solder Bump Ball Mounted Solder Bump
Bamp Size (φ300μm●) (φ260μm●) (φ200μm●)
Number of Pad 112 pins/chip 144 pins/chip 264 pins/chip
Number of Chip 714 chips/wafer 714 chips/wafer 712 chips/wafer

WLP TEG (Free Size Cut TEG：TEG0306,TEG03507,TEG0408,TEG0510)

WLP_TEG0306
Specification TEG0306 TEG03507 TEG0408 TEG0510
Wafer Size 8 inch 8 inch 8 inch 8 inch
Wafer Thickness 400μm 400μm 400μm 400μm
Cut Size (Min.) 600μm■ 700μm■ 800μm■ 1000μm■
Pad Pitch 300μm 350μm 400μm 500μm
Function Daisy Chain Daisy Chain Daisy Chain Daisy Chain
Electrode Ball Mounted Solder Bump Ball Mounted Solder Bump Ball Mounted Solder Bump Ball Mounted Solder Bump
Bump Size φ205μm φ225μm φ260μm φ315μm
Number of Chip 79257 chips/wafer 58490 chips/wafer 44161 chips/wafer 28212 chips/wafer

WALTS-TEG ME0102JY

　[for Migration Test]

TEG_ME0102
Specification WALTS-TEG ME0102JY
Wafer Size 12 inch
Chip Size 20mm×25mm
Chip Name Chip_10_15 Chip_20_25 Chip_30_35
Metal Height 5.5μm
Facing Legth 3mm
Line/Space 15μm/10μm 15μm/15μm 15μm/20μm 15μm/25μm 15μm/30μm 15μm/35μm
Pitch 25μm 30μm 35μm 40μm 45μm 50μm
Number of Chip 34 chips/wafer 40 chips/wafer 34 chips/wafer

WALTS-TEG HPW-0101JY

　[for Thermal Resistance Analysis at High Power]

TEG_HPW-0101JY
Specification HPW-0101JY
Wafer Size 8 inch（Notch）
Wafer Thickness 725±25μm
Chip Size 3.0mm■
Pad Pitch 300μm
Function Thermal Analysis by Diode
Heat Generarion by Resistance
Electrode Al Pad, Cu Pillar Bump, Solder Bump, Au Bump
Number of Pad 32 pads/chip
Number of Chip 2964 chips/wafer
 ＜Maximum Output＞ Max. 14.5W/Chip
＜Option＞ Back Side Metallization

WALTS-TEG HPWTEG-150FA-0101JY

WALTS-TEG HPWTEG-300FA-0101JY

TEG_FC200SCJY
Specification HPWTEG-150FA HPWTEG-300FA
※Base Wafer：WALTS-TEG HPW-0101JY
Wafer Size 8 inch（Notch） 8 inch（Notch）
Wafer Thickness 725±25μm 725±25μm
Chip Size 3.0mm■ 3.0mm■
Pad Pitch 150μm 300μm
Function Thermal Analysis by Diode
Heat Generarion by Resistance		 Thermal Analysis by Diode
Heat Generarion by Resistance
Bump Size φ110µm● φ110µm●
Electrode/Height Ni+SnAg
(Ni5μm+SnAg75µm）		 Cu Pillar
(Cu45μm+SnAg10μm)
Number of Pad 32 pads/chip 32 pads/chip
Number of Bump 32 bumps + 253 Dummy bumps 32 bumps + 64 Dummy bumps
Number of Chip 2964 chips/wafer 2964 chips/wafer
＜Option＞ Back Side Metallization Back Side Metallization

WALTS-TEG HPW MarkⅡ-0101JY

TEG_HPW-Mark2_0101JY
Specification HPW MarkⅡ-0101JY
Wafer Size 8 inch（Notch）
Wafer Thickness 725±25μm
Chip Size 10.0mm■
Pad Pitch
(Passivation opening)		 Pad①～③ 0.4mm■ (0.3mm■)
Pad④ 2.72mm×0.5mm (2.32mm×0.3mm)
Scribe line width 120μm
Function Thermal Analysis by Diode
Heat Genaration by Resistance
Insulation Resistance Test by High Voltage Plate
Electrode Al Pad
Number of Pads 12 pads
Number of Chips 244 chips/wafer
Maximum Output Max. 55W/Chip
＜Option＞ Back Side Metallization

　

WALTS-TEG LCD30A-0101JY

TEG_LCD30-0101JY
Specification LCD30A-0101JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 15.1 mm × 1.6 mm
Pad Pitch 30μm
Function Daisy Chain
Bump Size 20µm×100µm
Electrode Au (Plate)
Number of Pad 726 pads/chip
Number of Chip 1056 chips/wafer
Evaluation KIT WALTS-KIT LCD30-0101JY
WALTS-KIT COF30-0101JY

WALTS-TEG PWB8-0101JY

WALTS-TEG PWB-0101JY

TEG_PWB-0101JY
Specification PWB8(TYPE-A) PWB(TYPE-A) PWB8(TYPE-B) PWB(TYPE-B)
Wafer Size φ 8 inch φ 6 inch φ 8 inch φ 6 inch
Wafer Thickness 725±25μm 625±25μm 725±25μm 625±25μm
Chip Size 6.0mm■ 6.0mm■ 6.0mm■ 6.0mm■
Metal Thickness Al-Si-Cu 4μm Al-Si 3μm Al-Si 4μm Al-Si 4.6μm
Function Bondability Check Bondability Check Bondability Check Bondability Check
Pad config Plane Plane Plane Plane
Pad Size 5060×2420μm
270×5300μm		 5060×2420μm
270×5300μm		 5060×2420μm
270×5300μm		 5060×2420μm
270×5300μm
Passivation Opening 5040×2420μm
250×5280μm		 5040×400μm
250×5280μm		 5040×2420μm
250×5280μm		 5040×400μm
250×5280μm
Scribe width 100μm 100μm 100μm 100μm


WALTS-TEG ITO1101-0100JYUPDATE

TEG_ITO1101-0101JY
Specification ITO1101-0100JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 20.0mm■
Numver of pad 56 pads/chip
Pad size 160μm■
Number of chip 57 chips/wafer

WALTS-TEG ITO1102-0100JYUPDATE

TEG_ITO1102-0101JY
Specification ITO1102-0100JY
Wafer Size 8 inch
Wafer Thickness 725±25μm
Chip Size 20.0mm■
Numver of pad 56 pads/chip
Pad size 160μm■
Number of chip 57 chips/wafer

-
